8 Day Rosewood New Haven Miniature Ogee - Restoration

P5120031

The title is a bit of a mouthful, but this is a rather long-to-describe clock. It's a miniature ogee clock made by the New Haven Clock Company, and while most of these tend to be 30 hour duration, this one is an 8 day example. The case is nicely veneered in rosewood, and it's actually an "O.O.G" design, which simply means that it has a concave and convex moulding used for the door and edge band on the case (as opposed to flat).

This is a pretty new purchase (Nov 16 2016), and it's the most recent clock I've purchased. While it looked to be in great shape in the listing photos, there was a bit of damage to it (largely cosmetic), however, it arrived even more damaged. While in transit the movement tore loose, and I was very lucky that neither glass was broken. In addition to this, the door rattled apart, veneer was torn loose, as well as several of the dial blocks. The gong also got slightly mangled, and the dial was slightly warped.

Here are some blurry photos I took just as I was unwrapping the clock.

PB200686

PB200687

PB200688

The movement and dial (as well as all the loose bits of wood and parts) were carefully removed from the case. The dial on this clock is especially lovely. I later gave it a very gentle cleaning to remove some of the dirt.

PB210689

PB210690

PB210691

The door would not close.

PC050053

Two damaged corners:

PC050054

Damaged lower right corner.

PC050055

This spot I could see in the listing photos. It almost looks like a later repair that was done in mahogany rather than rosewood. Some of the banding around the outside edge looks like it could be either wood. I ended up replacing this entire section of veneer.

PC050056

Top right corner of the door. This is an old repair. I thought of re-repairing it, but ultimately I left it alone and glued it back in place.

PC050057

The door catch was NOT original, and it was a very poor replacement.

PC050058

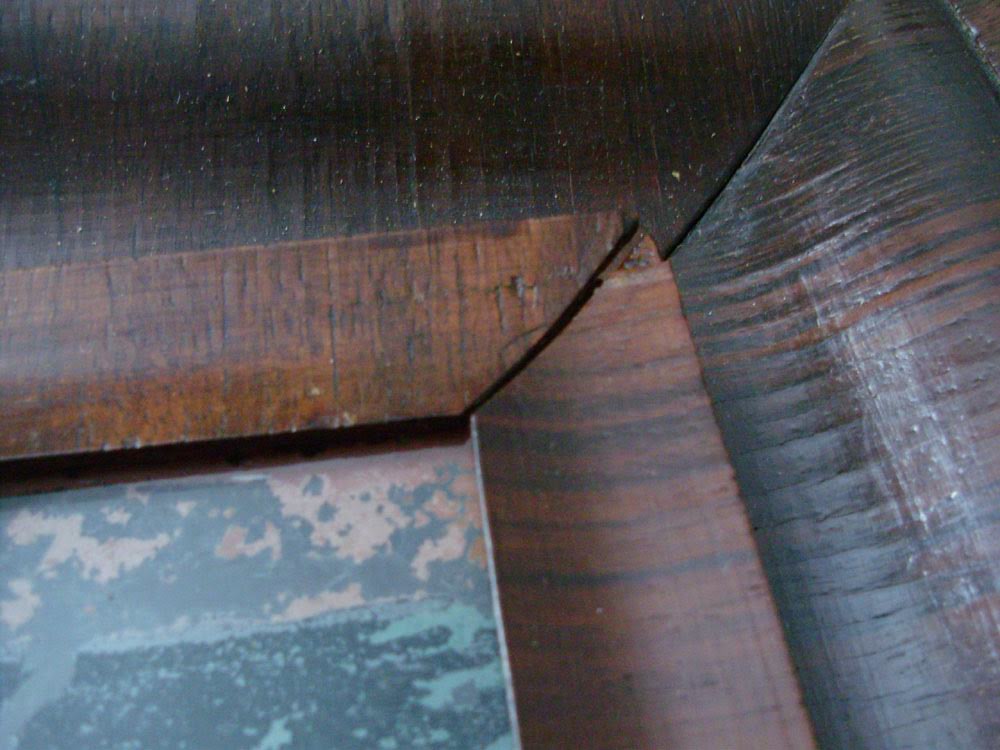

Loose door frame (lower left corner) with a tiny chip.

PC050059

This was by far the worst of the damage, because it's not something that can be fixed. All these scratches to the backboard were from the movement that had torn free and bounced around. The only way to remove the marks would be to sand or scrape the backboard, and this would ruin the original surface.

PC050061

PC050062

Some of the debris.

PC050063

So now what? Well, it looks rather bad, but it's all fixable. The warped sections of the dial were fixed with gentle finger pressure. The gong was reset fairly easily, and that largely just leaves woodworking problems. A bunch of small pieces were still present (like the broken top left corner of the door), and the rest could be patched.

Here is that wide section of flaky mahogany veneer. I fixed this area with some salvaged rosewood veneer which was already curved. This came from a completely destroyed donor case. For repairs like this, where the clock case is still in good shape, and the original finish is still good, I will do all the repairs and patches without refinishing the case. I simply sand a bit past the new repairs, and then I blend everything in. One of the best parts about antiques finished with shellac is that the new will melt and blend into the old. The only time this doesn't work well is if the existing finish has crackled or alligatored.

P4290039

Top corner of the door. This was sanded down to level it out a bit better.

P4290040

Bottom corner of the door. There are sanding marks on a fairly wide spot because part of the edge also broke and had to be glued. That long scratch was also largely buffed and polished out.

P4290041

Bottom right corner:

P4290042

All of the screw holes on this clock needed repairs. I decided to plug and patch all the dial holes using pine slivers (not toothpicks) and putty. The top corner block also had a big chunk of wood broken off.

P4290045

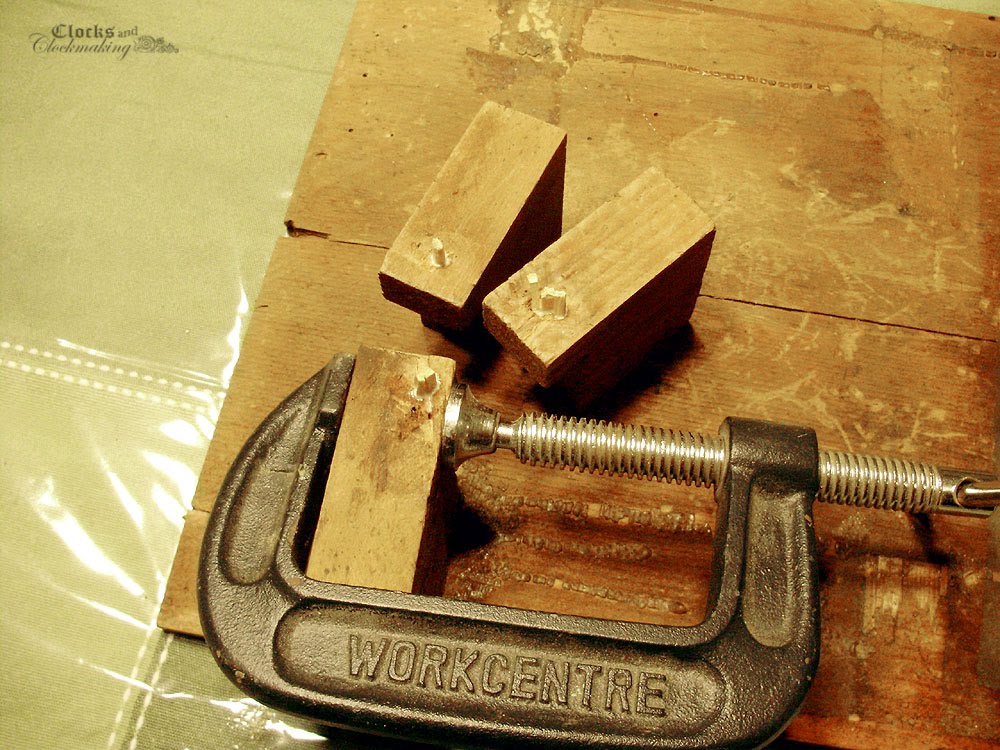

The lower movement mounting block was in pieces. It had broken in 3, but it also had a diagonal break in it, and 2 added nails through it, which I removed.

P4290047

P4290048

It had to be clamped in two sessions.

P4290050

The last things to do were to apply some shellac to the repairs, and then buff the finish and wax polish. Once that was done, I tackled the movement.

The original springs were in terrible shape. Not only were they set (where they don't open up much once they are free/out of the movement), they were also warped and crooked (which isn't good either). I decided to install a new pair of springs. I don't know why, but one of my two new springs opened up about twice as much as the other. I don't replace springs very often, but maybe someone can let me know if this is normal. Both these springs are new, and they are from the same manufacturer, and they were bought at the same time. Tiles are 12" x 12".

P5040065

All the clock parts after cleaning:

P5040066

The movement was in fairly good condition, but I did have to dress-up a few pivots on the lathe, and I installed a pair of bushing to the escape wheel.

After re-assembly and during testing:

P5060084

Here you can see the repaired bottom mounting block. I also had to plug and re-drill all the mounting holes in the backboard.

P5060086

This is the best photo (out of about a half dozen) that shows the area of the banding that I replaced. I did get a tiny bit of a chip in there, but it matches the overall finish and condition of the clock. I don't remember if I used any stain on this repair. If I did, it was a very light brown, followed by shellac (maybe 5 thin coats?)

P5060089

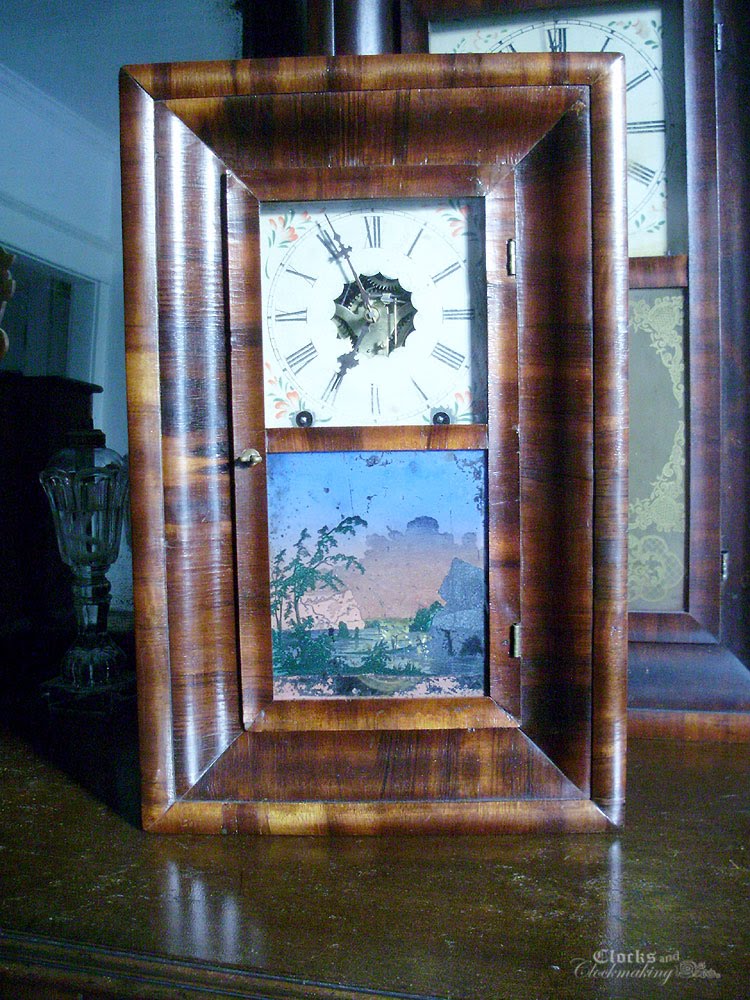

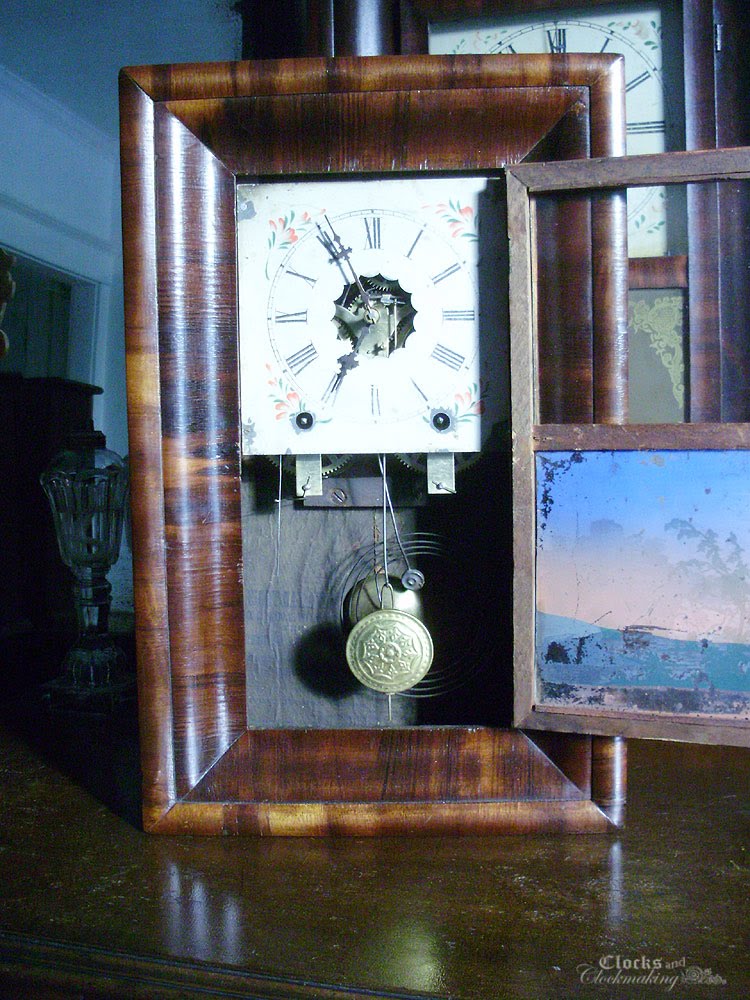

Here is the finished clock. It was photographed in late afternoon sun, so the veneer looks a lot lighter and brighter than normal.

P5120021

P5120022

P5120024

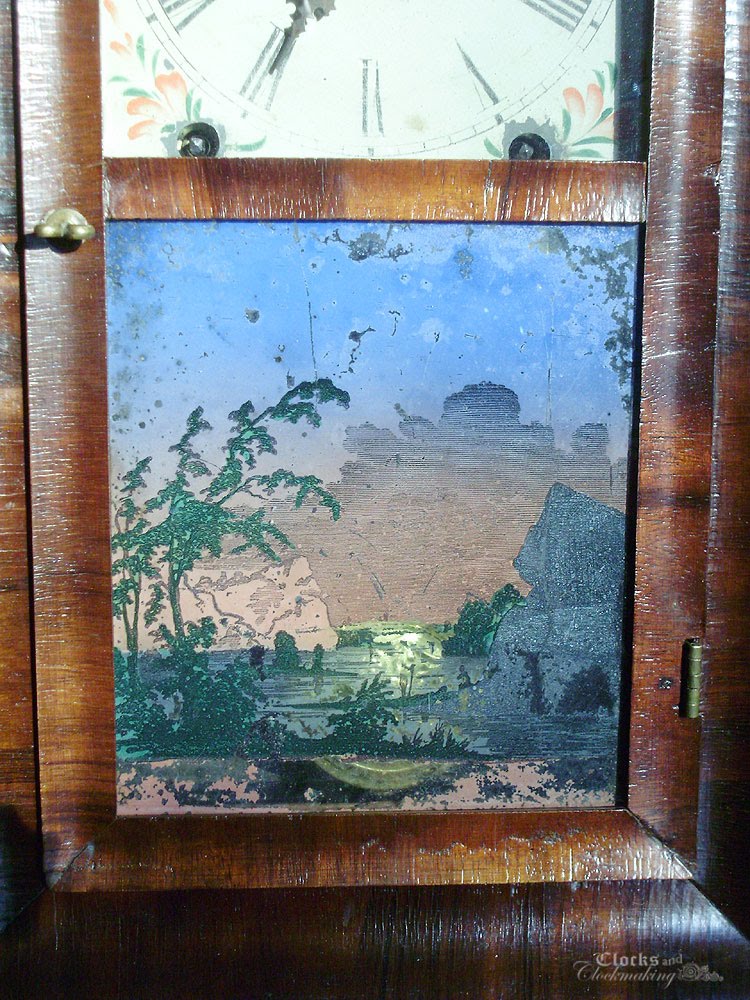

I am not familiar with this tablet. I have seen thousands of tablets, and I know a lot of the patterns from memory, but this is not one that I remember seeing. It doesn't seem to have a title, and if it did, that area has flaked away. If anyone has any information about it, or has a photo of another one like it, please let me know.

Note: I was able to find and fit a spare antique door catch, which I had in my spare parts. It is especially well suited to this clock because this door catch is a slightly smaller size than usual.

P5120028

P5120029

Here is the clock just slightly ahead of a standard ogee clock (the E.N. Welch which you can see here: http://jcclocks.blogspot.ca/2016/05/e-n-welch-ogee-clock-restoration.html). The standard ogee clock measures 26" x 15.5", and the miniature measures 18 1/8" x 11.5". The dial has a 5" chapter ring.

P5120031

2 comments:

  1. Nice work JC! And you of course are correct that these clocks are most often 30 hr., so its being 8 day is a very nice feature. Regards the new springs, I have noticed that some seem to be more compressed than others. I can't say I ever had 2 side by side, like you show, that had that much difference. But, as long as it runs and strikes 8 days all must be good? Great documentation and photos. Keep up the great work! Jim D

    ReplyDelete
    Replies
    1. Thanks Jim. I am happy to report that the clock does run for 8 days!

      Delete
